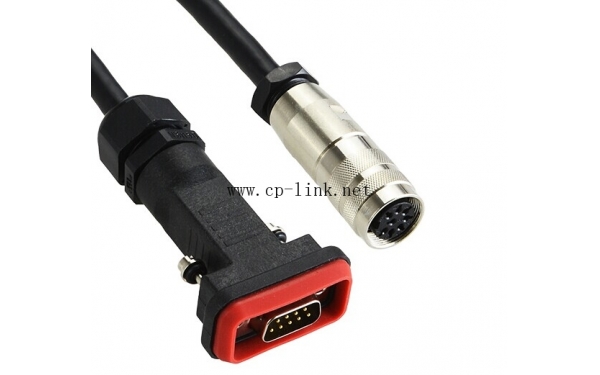

AISG RRU/RCU cable
8-Conductor Remote Electrical Tilt (RET) / AISG compatible control cable assemblies are terminated with Male and Female FS1 type DIN connectors. These cable assemblies are available in lengths from 1 meter to 100meters. The connectors on these cable assemblies are interchangeable with Amphenol C 901 A/B/C and Binder 423 series
Connectors:
AISG with connector,The connectors of series FS1 with cable are available with 3-8 contacts, screw coupling,can interchange with Amphenol C 091 A /B/D & Binder 423 series.Meet DIN45326 standard. All connectors of series FS1 are EMI protected and IP 67 proof. Main applications for FS1 connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application.Cable connector main applications for 3G, Tower Mounted Amplifier, Base Stations.
Electrical characteristics:
Rating currency:5A
Rating voltage:32V(D.C.)
Contact impendence:5mΩ (Max.)
Insulation impendence:1010Ω(Min.)
Withstanding voltage:1200Vrms.1Min(60Hz)
Mechanical characteristics
Mechanical characteristics: 500
grade of waterproof:IP67
Climatic characteristics
Working Temp:-25°C~85 °C
humidity:≤80%
