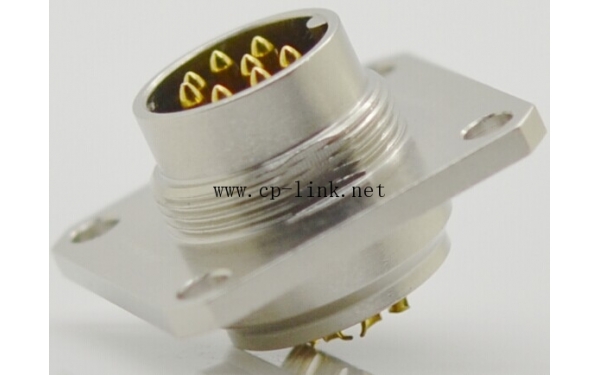

square male receptacle FS1 are available with 5-8 contacts, screw coupling,can interchange with Amphenol C 091 A /B/D & Binder 423 series.Meet DIN45326 standard. All connectors of series FS1 are EMI protected and IP 67 proof. Main applications for FS1 connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application.Cable connector main applications for 3G, Tower Mounted Amplifier, Base Stations.It is same as Lumberg 0317-1 and 0307-1,same as binder's 423/680 series.
1.Name FS1 type connector
2.Number of contacts 3,4,5,6,7,8 pcs
3.Contacts type: J:pin; K:socket
4.Meet cable diameter: 6-9 mm
Technical characteristics
|
Temperature |
Relative humidity |
Vibration |
Shock |
Endurance |
|
-55°C~ +85°C |
90-95% at 40 Deg C |
10~1000Hz 196m/s² |
490m/s² |
1000 cycles |
|
Contact |
Current |
Voltage |
Contacts resistance |
|
1.5mm |
7 A |
60-220VAC |
≤3mΩ |
