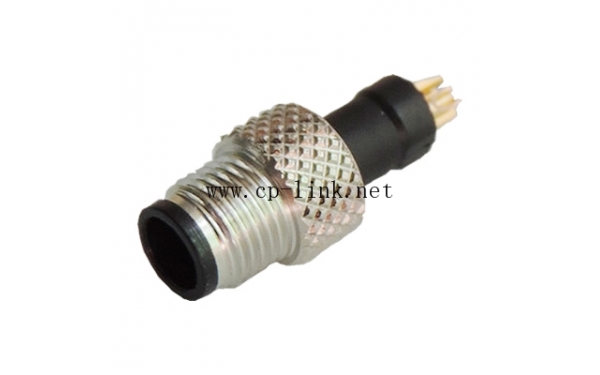

M5 4pin male Soldering molding connector
M5 4pin male Soldering molding connector
Publish：SHENZHEN CP-LINK ELECTRONIC CO.,LTD  Time：2014-01-19

  • Description
  •

  • Degree of protectioin IP67

    3, 4 poles are available

    TPU over-molded

  • RoHS & REACH Compliance

    Cable length customized, PUR and PVC cable options.


  • Electrical Data
  • Rated voltage:
  • 60V
  • Insulation resistance:
  • ≥100MΩ
  • Rated current:
  • 1A
  • Contact resistance:
  • ≤5mΩ
  • Ambient temperature:
  • -20℃~+80℃

  • Connector Specification
  • Polarity:
  • 3pins, 4pins
  • Overmold:
  • TPU
  • Contacts:
  • Brass with gold plated
  • Insert:
  • PA+GF
  • Coupling nut/screw:
  • Brass with nickel plated
  • Degree of protection:
  • IP67 in locked condition

  • Cable/Wire Specification
  • Cable length:
  • Customized solution
  • Cable jacket:
  • PUR/PVC
  • Core insulation material:
  • PVC
  • Core insulation colours:
  • Customized solution
  • Core cross-section:
  • 26AWG or 0.14mm2
