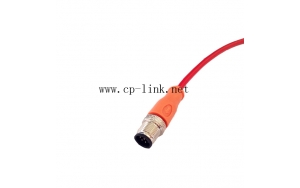

Description of M12 5 pin male colored cable:
1.) M12 5 pin male colored cable, straight fix screw with self-locking threaded joint, electrical connector;
2.) Protected from dust and water during immersion, resistant to many oils and chemical;
3.) Professionally for inductive or capacitative proximity switches, sensor devices and actuator devices;
4.) Plug design as per IEC 61076-2-101;
Standard:
The electrical connector we produced according to standard IEC61076-2-104, this International Standard describes electrical connectors M8 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with screw-locking.
Detailed properties table:
| Connector locking system |
M12 |
| Coding |
A |
| Gender |
Male |
| Pole |
5 poles |
| Termination |
Crimp, overmoulded on cable |
| Wire gauge (mm) |
0,34 mm² |
| Wire gauge (AWG) |
22 |
| Cable lenth |
Option |
| Degree of protection |
IP67 |
| Mechanical operation |
>100 mating cycles |
| Upper temperature |
+85 °C |
| Lower temperature |
-25 °C |
| Rated voltage |
250 V |
| Rated impulse voltage |
2500 V |
| Pollution degree |
3 |
| Rated current (40°C) |
4A |
| Volume resistivity |
≤3mΩ |
| Material of contact |
CuZn (brass) |
| Contact plating |
Au (gold) |
| Material of contact body |
Nylon+30% glass fiber |
Warm tips:
M12 5 pin male colored cable
1.) To reduce cost and low price, few suppliers are doing Monkey business via offering fake capacity etc;
2.) The price competition is hug, but we are looking for Win-win Business and Long-term trustable partner;
3.) Quality & Credibility is also important comparing with price;
Value added service:
1.) Free add your LOGO on the surface of over-molded connectors; (order quantities negotiable)
2.) Unique designed package for you; (order quantities negotiable);
Packaging information:
1.) Carton size: 46*30*30CM;
2.) Qty / Carton: 80~120 pieces (relate to cable length);
Warranty & After-sales service:
1.) Warranty: 10 years, start from purchase date;
2.) Repair and service will be free within given period 10 years;
3.) Return: within 7 days from the receipt date;
4.) All items much be returned in NEW condition, including the packing and all accessories;
5.) All shipping charges for the returned products are be paid by customer;
