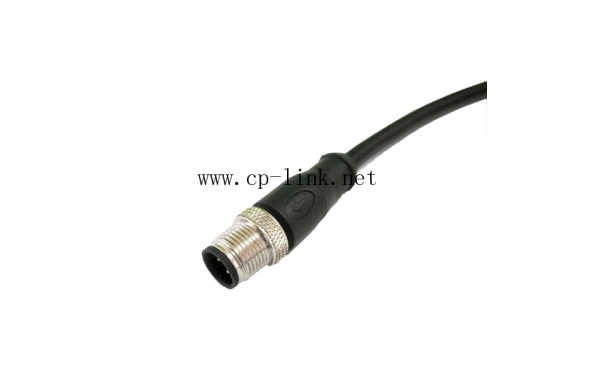

M12 3 pin male cable
M12 3 pin male cable
Publish:SHENZHEN CP-LINK ELECTRONIC CO.,LTD  Time:2014-06-02
Description of M12 3 pin male cable:
1.)  M12 3 pin male cable , straight fix screw with self-locking threaded joint, electrical connector;
2.) Protected from dust and water during immersion, resistant to many oils and chemical;
3.) Professionally for inductive or capacitative proximity switches, sensor devices and actuator devices;
4.) Plug design as per IEC 61076-2-101;
Standard:
The electrical connector we produced according to standard IEC61076-2-104, this International Standard describes electrical connectors M8 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with screw-locking.
Detailed properties table:
Connector locking system M12
Coding A
Gender Male
Pole 3 poles
Termination Crimp, overmoulded on cable
Wire gauge (mm) 0,34 mm²
Wire gauge (AWG) 22
Cable lenth Option
Degree of protection IP67
Mechanical operation >100 mating cycles
Upper temperature +85 °C
Lower temperature -25 °C
Rated voltage 250 V
Rated impulse voltage 2500 V
Pollution degree 3
Rated current (40°C) 4A
Volume resistivity ≤3mΩ
Material of contact CuZn (brass)
Contact plating Au (gold)
Material of contact body Nylon+30% glass fiber
Warm tips:
M12 3 pin male cable
1.) To reduce cost and low price, few suppliers are doing Monkey business via offering fake capacity etc;
2.) The price competition is hug, but we are looking for Win-win Business and Long-term trustable partner;
3.) Quality & Credibility is also important comparing with price;
Value added service:
1.) Free add your LOGO on the surface of over-molded connectors; (order quantities negotiable)
2.) Unique designed package for you; (order quantities negotiable);
Packaging information:
1.) Carton size: 46*30*30CM;
2.) Qty / Carton: 80~120 pieces (relate to cable length);
Warranty & After-sales service:
1.) Warranty: 10 years, start from purchase date;
2.) Repair and service will be free within given period 10 years;
3.) Return: within 7 days from the receipt date;
4.) All items much be returned in NEW condition, including the packing and all accessories;
5.) All shipping charges for the returned products are be paid by customer;
