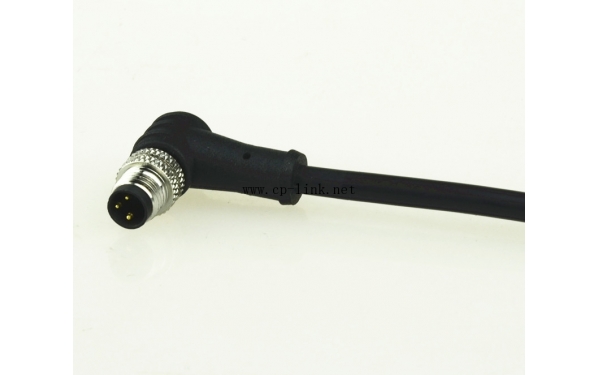

M8 male, right angled, molded cable connector
M8 male, right angled, molded cable connector
Publish:SHENZHEN CP-LINK ELECTRONIC CO.,LTD  Time:2014-06-02
Item No.: M8-A05MS02001
Description of M8 3 pin male right angled ca
ble equal to Binder, Phoenix
1.) M8 3 pin male cable, fix screw with self-locking threaded joint, electrical connector;
2.) Protected from dust and water during immersion, resistant to many oils and chemical;
3.) Professionally for inductive or capacitative proximity switches, sensor devices and actuator devices;
4.) Plug design as per IEC 61076-2-104;
5.) Design with M8*1.0 screw locking;
Standard:
The electrical connector we produced according to standard IEC61076-2-104, this International Standard describes electrical connectors M8 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with screw-locking.
Electrical Data:
Rated current 3A
Rated voltag 30V
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ
Connector Specification:
Connector locking system Screw-locking
Waterproof O-ring Viton O-ring
Material of contacts body PA66+GF
Material of female connetor contacts Phosphorus with gold plated
Connector screw Brass with nickel plated
Cable/Wire Specification
Wire gauge (AWG) 22AWG ~ 30AWG
Wire gauge (mm²) 0.25mm² or 0.34mm²
Jacket material PVC/PUR
Temperature range -25°C ~ +90°C or -40°C ~ +105°C
