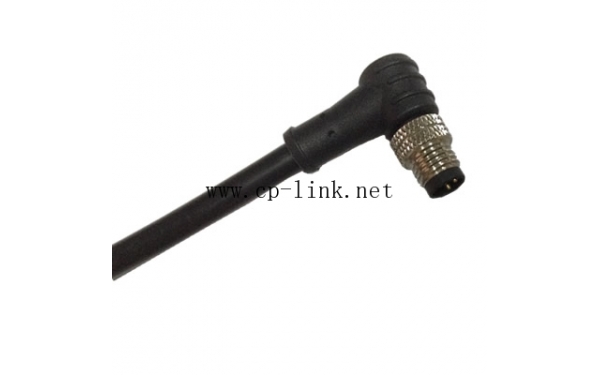

M8 male, right angled, molded cable connector

Publish：SHENZHEN CP-LINK ELECTRONIC CO.,LTD Time：2014-06-02

Standard: IEC 61076-2-104
Certification: CE IP67

Description
Degree of protectioin IP67

3, 4, 5poles are available

360℃ EMC shielding is available for molded cable type
TPU over-molded or PA+GF shell
Anti-vibration locking screw design
RoHS & REACH Compliance
Cable length customized, PUR and PVC cable options

Electrical Data
Rated voltage:
60V, 30V
Insulation resistance:
≥100MΩ
Rated current:
3A , 1A
Contact resistance:
≤5mΩ
Ambient temperature:
-20℃~+80℃

Connector Specification
Polarity:
3pins, 4pins, 5pins
Overmold:
TPU
Contacts:
Brass with gold plated
Insert:
TPU
Coupling nut/screw:
Brass with nickel plated
Degree of protection:
IP67 in locked condition

Cable/Wire Specification
Cable length:
Customized solution
Cable jacket:
PUR/PVC
Core insulation material:
PVC
Core insulation colours:
Customized solution
Core cross-section:
24AWG or 0.25mm2, 26AWG or 0.14mm2
