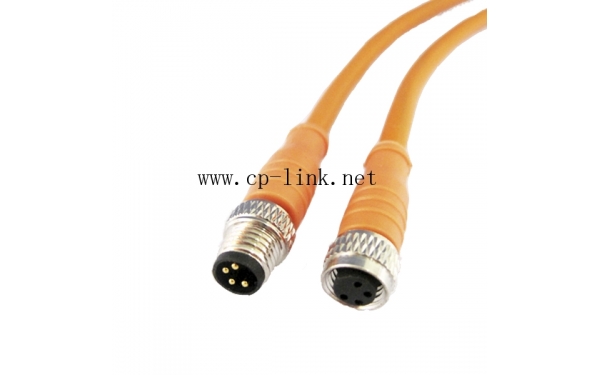

M8 4 pin male to female cable orange

Publish：SHENZHEN CP-LINK ELECTRONIC CO.,LTD Time：2014-06-02

Description of M8 4 pin male to female cable orange:

1.) M8 4 pin male to female cable orange, straight fix screw with self-locking threaded joint, electrical connector;

2.) Protected from dust and water during immersion, resistant to many oils and chemical;

3.) Professionally for inductive or capacitative proximity switches, sensor devices and actuator devices;

4.) Plug design as per IEC 61076-2-104;

5.) Design with M8*1.0 screw locking;

Standard:

The electrical connector we produced according to standard IEC61076-2-104, this International Standard describes electrical connectors M8 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with screw-locking.
Detailed properties table:

Connector locking system	Screw-locking
Termination	Crimp, overmoulded on cable
Wire gauge (mm)	0.25 mm² or 0.34 mm²
Wire gauge (AWG)	18~24
Cable length	Optional
Degree of protection	IP67
Mechanical operation	>100 mating cycles
Upper temperature	+85 °C or +105 °C
Lower temperature	-25 °C or -40 °C
Rated voltage	30 V
Rated impulse voltage	800 V
Rated current (40°C)	4A
Volume resistivity	≤ 3 mΩ
Contact plating	Au (gold)
Material of contact body	Nylon+30% glass fiber

Warm tips:

M8 4 pin male to female cable orange

1.) To reduce cost and low price, few suppliers are doing Monkey business via offering fake capacity etc;

2.) The price competition is hug, but we are looking for Win-win Business and Long-term trustable partner;

3.) Quality & Credibility is also important comparing with price;

Value added service:

1.) Free add your LOGO on the surface of over-molded connectors; (order quantities negotiable)

2.) Unique designed package for you; (order quantities negotiable);

Packaging information:

1.) Carton size: 46*30*30CM;

2.) Qty / Carton: 80~120 pieces (relate to cable length);

Warranty & After-sales service:

1.) Warranty: 10 years, start from purchase date;

2.) Repair and service will be free within given period 10 years;

3.) Return: within 7 days from the receipt date;

4.) All items much be returned in NEW condition, including the packing and all accessories;

5.) All shipping charges for the returned products are be paid by customer;
