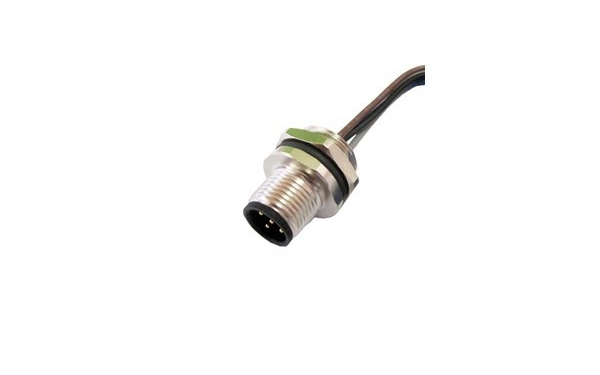

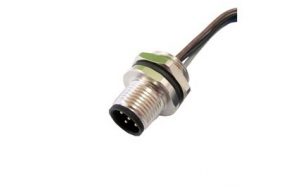

M12 5 pin male socket with wires rear panel mount connector
1.) Assmbly& screw type m12 connector 5pin, waterproof IP67;
2.) Protected from dust and water during immersion,resistant to many oils and chemical;
3.) Can be easily connected to proximity switches, photoelectric barries, flow moitoring devices and field bus components sensor devices and actuator devices;
4.) Satisfy all the requirements of sensor devices and actuator devices in automation technology;
Standard:
The cable connector we produced according to standard IEC61076-2-101, this International Standard describes cable connectors M12 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with screw-locking.
Detailed properties table:
Number of contacts : 5 pin
| Connector locking system |
Screw-locking |
| Termination |
solder wires |
| Wire gauge (mm) |
0.25 mm² |
| Wire gauge (AWG) |
24 |
| Pollution degree |
3 |
| Degree of protection |
IP68 |
| Mechanical operation |
>100 mating cycles |
| Upper temperature |
+85 °C (120 °C ) |
| Lower temperature |
-25 °C |
| Rated voltage |
60 V |
| Rated impulse voltage |
1500 V |
| Rated current (40°C) |
4A |
| Contact resistance |
≤ 3 mΩ |
| Contact plating |
Au (gold) |
| Material of contact body |
PA/PBT |
