M12 5 pin male socket with wires front fastened
M12 5 pin male socket with wires front fastened
Publish:SHENZHEN CP-LINK ELECTRONIC CO.,LTD  Time:2014-01-06

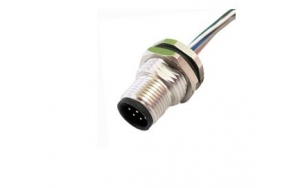

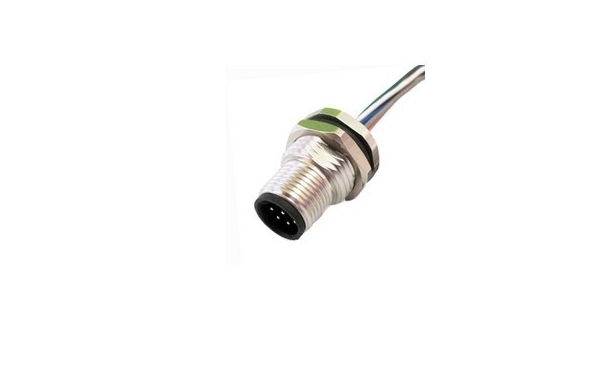

M12 5 pin male socket with wires front fastened

1.) Assmbly& screw type m12 connector 5pin, waterproof IP67;
2.) Protected from dust and water during immersion,resistant to many oils and chemical;
3.) Can be easily connected to proximity switches, photoelectric barries, flow moitoring devices and field bus components sensor devices and actuator devices;
4.) Satisfy all the requirements of sensor devices and actuator devices in automation technology;

Standard:

The cable connector we produced according to standard IEC61076-2-101, this International Standard describes cable connectors M12 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with screw-locking.


Detailed properties table:
Number of contacts : 5 pin

Connector locking system Screw-locking
Termination solder wires
Wire gauge (mm) 0.25 mm²
Wire gauge (AWG) 24
Pollution degree 3
Degree of protection IP68
Mechanical operation >100 mating cycles
Upper temperature +85 °C (120 °C )
Lower temperature -25 °C
Rated voltage 60 V
Rated impulse voltage 1500 V
Rated current (40°C) 4A
Contact resistance ≤ 3 mΩ
Contact plating Au (gold)
Material of contact body PA/PBT
