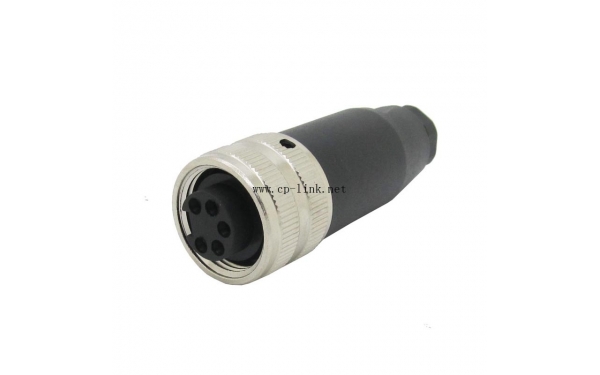

Mini-change 7/8" connector 5PIN Female

Publish：SHENZHEN CP-LINK ELECTRONIC CO.,LTD Time：2015-03-08

Mini-change 7/8" connectors
P/N: MINI-C78ASS05F

Description
- Degree of protection IP67
- 4/5 poles are available
- TPU over molded
- Cable length customized
- Anti-vibration locking screw design
- RoHs & Reach compliance
Electrical Data
Rated voltage:300V
Insulation resistance:≥100MΩ
Rated current:8A for 5P; 13A for 4P
Contact resistance:≦5mΩ
Ambient temperature:-20℃~+80℃

Connector Specification
Polarity:4/5P
Overmold:TPU
Contacts:Brass with gold plated
Insert:PA+GF
Coupling nut/screw:Aluminium anodized black
Degree of protection:IP67 in locked condition

Cable/Wire Specification
Cable length:Customized solution
Core insulation material:PVC
Core insulation colours:Customized solution
Core cross-section:18AWG or 1.0mm2; 20AWG or 0.5mm2
