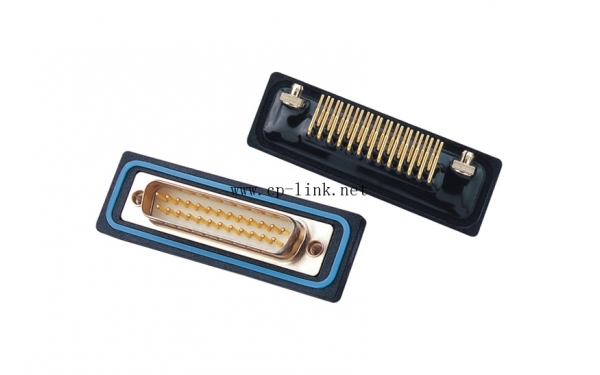

D-Sub male waterproof connector,panel mount, PCB,right angled pin, front mount
Publish：SHENZHEN CP-LINK ELECTRONIC CO.,LTD Time：2014-10-27
- Description
-
-
Degree of protection IP67
-
9,15,25 poles is available
-
RoHS & REACH Compliance
- Electrical Data
- Rated voltage:
- 300V
- Insulation resistance:
- ≥1000MΩ
- Rated current:
- 5A
- Contact resistance:
- ≤10mΩ
- Ambient temperature:
- -25℃ ~ +70℃
- Connector Specification
- Polarity:
- 9, 15, 25 poles
- Contacts:
- Brass gold plated
- Insert:
- PBT+GF
- Coupling nut/screw:
- Brass nickel plated
- Degree of protection:
- IP67 in locked condition
