Waterproof D-SUB Connector

You are here : Home >> Products >> Waterproof D-SUB Con...

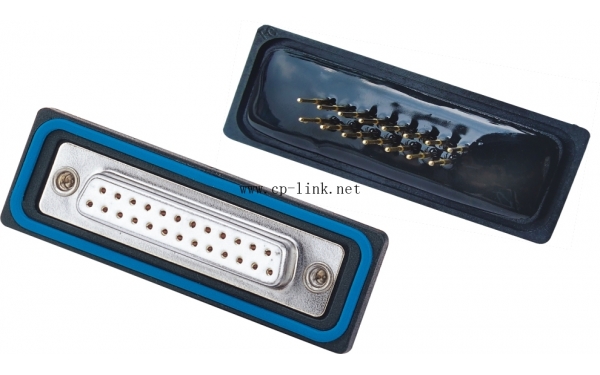

D-Sub female waterproof connector,panel mount, straight PCB,front mount
D-Sub female waterproof connector,panel mount, straight PCB,front mount
Publish：SHENZHEN CP-LINK ELECTRONIC CO.,LTD  Time：2014-10-27

  • Description
  •

  • Degree of protection IP67

  • 9,15,25 poles is available

  • RoHS & REACH Compliance


  • Electrical Data
  • Rated voltage:
  • 300V
  • Insulation resistance:
  • ≥1000MΩ
  • Rated current:
  • 5A
  • Contact resistance:
  • ≤10mΩ
  • Ambient temperature:
  • -25℃ ~ +70℃

  • Connector Specification
  • Polarity:
  • 9, 15, 25 poles
  • Contacts:
  • Brass gold plated
  • Insert:
  • PBT+GF
  • Coupling nut/screw:
  • Brass nickel plated
  • Degree of protection:
  • IP67 in locked condition
