M12 Distribution Boxes

You are here : Home >> Products >> M12 Distribution Box...

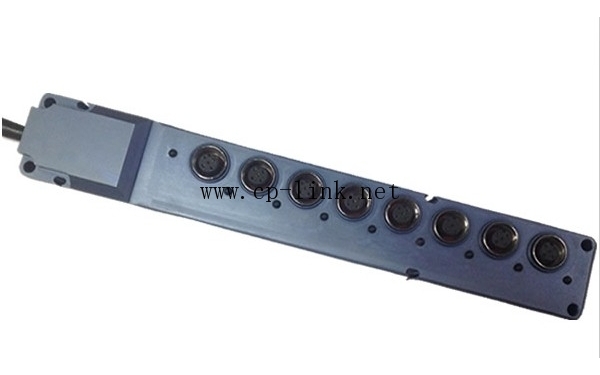

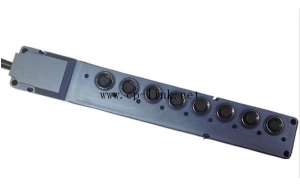

Distribution boxes,8 ports

Publish：SHENZHEN CP-LINK ELECTRONIC CO.,LTD Time：2014-02-09

Description
IP67 rated protection degree
8 ports of M12 3,4,5,8,12 poles sockets available
Marking tags/holder at each port allows for connecting identification
LED display for easy power and signal status indication
Offer customized cable solution
Robust structure design especially for tough surroundings

Electrical Data
Rated voltage: 10~30V/120V
Rated current: 2A per signal, 9A total
Contact resistance: ≤5mΩ
Ambient temperature:-25℃~+80℃

Connector Specification
Polarity: 3pins,4pins,5pins,8pins,12pins
Overmold: PBT
Contacts: Brass with gold plated
Insert: PA+GF
Coupling nut/screw: Brass with nickel plated
Degree of protection: IP67 in locked condition

Cable/Wire Specification
Cable length: Customized solution
Cable jacket: PUR/PVC
Core insulation material: PVC
Core insulation colours: Customized solution
Core cross-section:
22AWG or 0.34mm2, 18AWG or 0.75mm2
