AISG Waterproof Circle Connector

You are here : Home >> Products >> AISG Waterproof Circ...

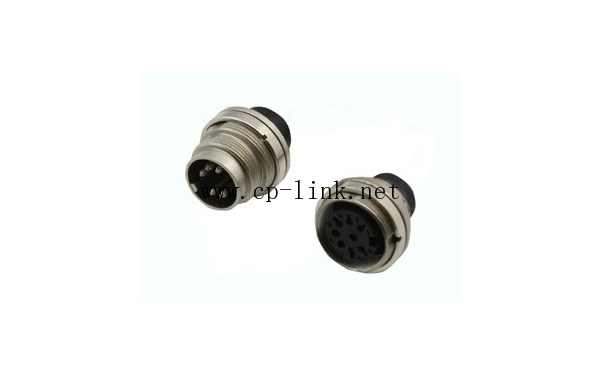

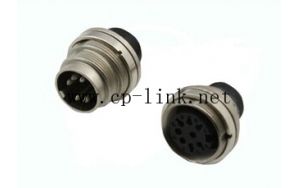

AISG connector  male & female solder type front mount
AISG connector male & female solder type front mount
Publish:SHENZHEN CP-LINK ELECTRONIC CO.,LTD  Time:2014-10-29
AISG connector
Main application for FS1 connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application.Cable connector main applications for 3G, Tower Mounted Amplifier, Base Stations.

1.electrical characteristics:
Rating currency:5A
Rating voltage:32V(D.C.)
Contact impendence:5mΩ (Max.)
Insulation impendence:1010Ω(Min.)
Withstanding voltage:1200Vrms.1Min(60Hz)

2.mechanical characteristics
Mechanical characteristics: 500
grade of waterproof IP67

3.climatic characteristics
Working Temp:-25°C~85 °C
humidity:≤80%
