SHENZHEN CP-LINK ELECTRONIC CO.,LTD
| Specifications: | |
| Connecting mode: | Quickly insert or pull the connection mode |
| Protection level: | IP67 |
| Current rating(A): | 1.0A |
| Operating voltage(AC.V.rms): | 30V |
| Withstand voltage(AC.V)1min: | 750V |
| Contact resistance: | <30mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | 5000 mating&unmating cycles |
| Temperature rating: | -25°C~70°C |
| Method of connecting cable: | Solder |
| Prevent the combustion level: | UL94-V0 |
| Resistance to vibration: | 10-500Hz,10g, Uninterrupted>100NS |

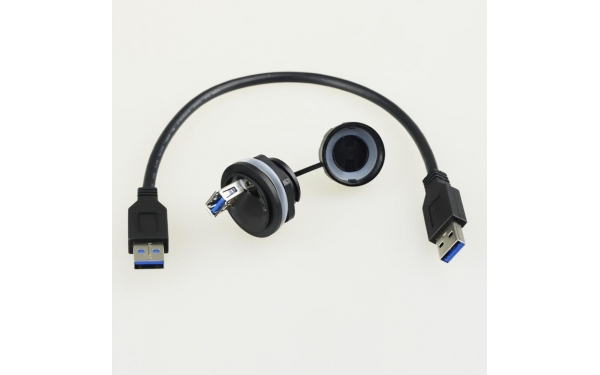

| Produce type | micro usb connector |
| Material: | |
| Receptacle Housing: | PBT,Black |
| Overmolding: | PVC,Black |
| Contact: | Copper Alloy |
| Gasket Seal: | Nitrile,Black |
| Main characteristics: | |
| - Sealed against dust and fluid (IP67) | |
| - Vibration resistance,impact resistance,stretching resistance | |
| - With one hand, can quickly insert or pull out | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
