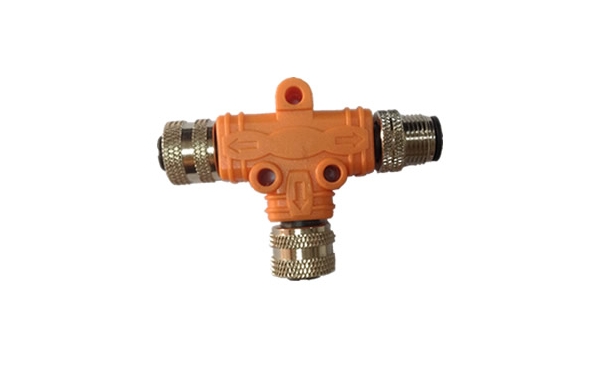

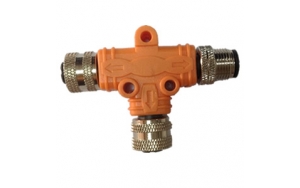

 M12 A coding 5 pin one male to two female connector splitter adapter T type
M12 A coding 5 pin one male to two female connector splitter adapter T type
Publish:SHENZHEN CP-LINK ELECTRONIC CO.,LTD  Time:2014-01-06
 M12 A coding 5 pin one male to two female connector splitter adapter T type

 5pin m12 waterproof connector ip67:

1.) 5pin m12 waterproof connector ip67, waterproof IP67;

2.) Protected from dust and water during immersion,resistant to many oils and chemical;

3.) Can be easily connected to proximity switches, photoelectric barries, flow moitoring devices and field bus components sensor devices and actuator devices;

4.) Satisfy all the requirements of sensor devices and actuator devices in automation technology;



Warranty & After-sales service:

1.) Warranty: 10 years, start from purchase date;

2.) Repair and service will be free within given period 10 years;

3.) Return: within 7 days from the receipt date;

4.) All items much be returned in NEW condition, including the packing and all accessories;

5.) All shipping charges for the returned products are be paid by customer;



Warm tips:

5 pin m12 waterproof connector ip67

To reduce cost and low price, few suppliers are doing Monkey business via offering fake capacity etc.

The price competition is hug, but we are looking for Win-win Business and Long-term trustable partner.

Quality & Credibility is also important comparing with price.

Value added service:

1.) Free add your LOGO on the surface of over-molded connectors; (order quantities negotiable)

2.) Unique designed package for you; (order quantities negotiable)

PLS feel free to let us know more, we will get back to you within 24 hours;

Packaging information:

1. Carton size: 20*20*20CM

2. Qty / Carton: 200 pieces



Detailed properties table:



Connector locking system Screw-locking
Termination Screw
Wire gauge (mm) 0,25 mm²
Wire gauge (AWG) 18~24
Wire gauge (mm) 0,75 mm²
Degree of protection IP67
Mechanical operation >100 mating cycles
Upper temperature +85 °C
Lower temperature -40 °C
Rated voltage 250 V
Rated impulse voltage 2500 V
Rated current (40°C) 4A
Volume resistivity ≤ 8 mΩ


Standard:

The electrical connector we produced according to standard IEC61076-2-104, this International Standard describes electrical connectors M12 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with screw-locking.
