SHENZHEN CP-LINK ELECTRONIC CO.,LTD

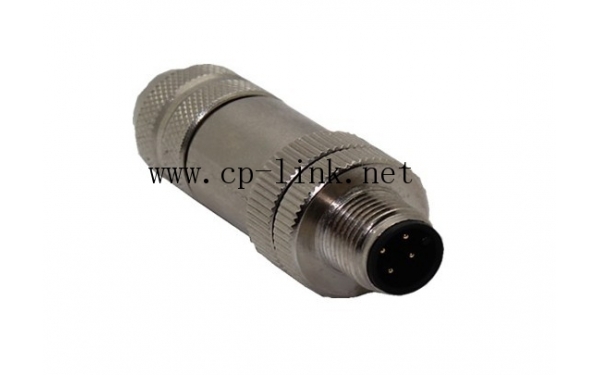

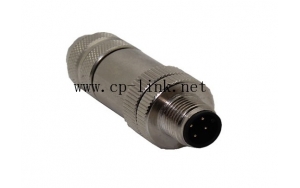

1.) Assmbly& screw type m12 connector 4pin, waterproof IP67;
2.) Protected from dust and water during immersion,resistant to many oils and chemical;
3.) Can be easily connected to proximity switches, photoelectric barries, flow moitoring devices and field bus components sensor devices and actuator devices;
4.) Satisfy all the requirements of sensor devices and actuator devices in automation technology;
Standard:
The cable connector we produced according to standard IEC61076-2-101, this International Standard describes cable connectors M12 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with screw-locking.
| Electrical Data: | |
| Rated current | 4A |
| Rated voltag | 250V |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector Specification: | |
| Connector locking system | Screw-locking |
| Waterproof O-ring | Viton O-ring |
| Material of contacts body | PA66+GF |
| Material of female connetor contacts | Phosphorus copper with gold plated |
| Connector screw | Brass with nickel plated |
| Cable/Wire Specification | |
| Wire gauge (AWG) | 22AWG ~ 28AWG |
| Wire gauge (mm²) | 0.25mm² or 0.34mm² |
| Jacket material | PVC/PUR |
| Temperature range | -25°C ~ +90°C or -40°C ~ +105°C |
