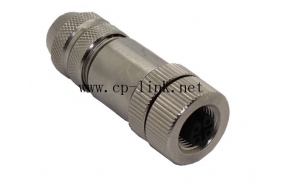

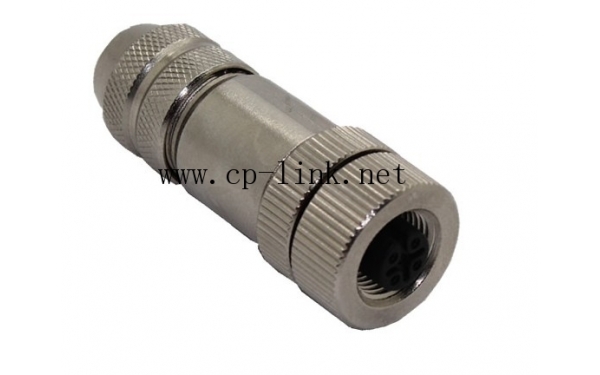

M12 Industry sensor 4pin female assembly connector with shield
M12 Industry sensor 4pin female assembly connector with shield
Publish:SHENZHEN CP-LINK ELECTRONIC CO.,LTD  Time:2014-05-26
Item No.:M12-A08FN004
M12 Industry sensor 4pin female assembly connector with shield
1.) Assmbly& screw type m12 connector 4pin, waterproof IP67;

2.) Protected from dust and water during immersion,resistant to many oils and chemical;

3.) Can be easily connected to proximity switches, photoelectric barries, flow moitoring devices and field bus components sensor devices and actuator devices;

4.) Satisfy all the requirements of sensor devices and actuator devices in automation technology;

Standard:

The cable connector we produced according to standard IEC61076-2-101, this International Standard describes cable connectors M12 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with screw-locking.

Electrical Data:
Rated current 4A
Rated voltag 250V
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ
Connector Specification:
Connector locking system Screw-locking
Waterproof O-ring Viton O-ring
Material of contacts body PA66+GF
Material of female connetor contacts Phosphorus copper with gold plated
Connector screw Brass with nickel plated
Cable/Wire Specification
Wire gauge (AWG) 22AWG ~ 28AWG
Wire gauge (mm²) 0.25mm² or 0.34mm²
Jacket material PVC/PUR
Temperature range -25°C ~ +90°C or -40°C ~ +105°C
