Item No.:M12-D03MSC004

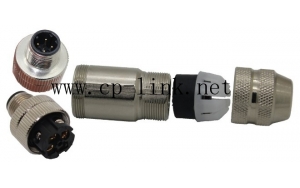

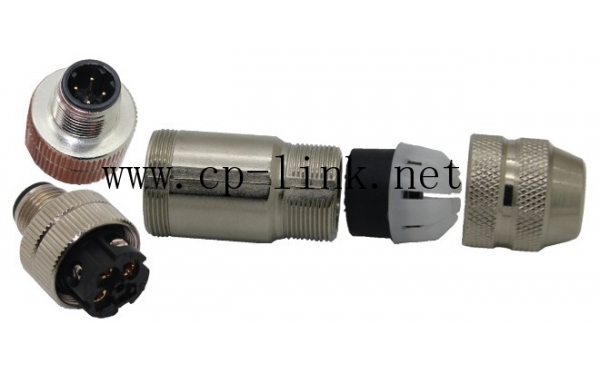

M12 D coding 4pin male assembly connector shieldable screw connection
1.) Assmbly& screw type m12 connector 4pin, waterproof IP67;
2.) Protected from dust and water during immersion,resistant to many oils and chemical;
3.) Can be easily connected to proximity switches, photoelectric barries, flow moitoring devices and field bus components sensor devices and actuator devices;
4.) Satisfy all the requirements of sensor devices and actuator devices in automation technology;
Standard:
The cable connector we produced according to standard IEC61076-2-101, this International Standard describes cable connectors M12 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with screw-locking.
Detailed properties table:
Number of contacts : 4 pin
| Connector locking system |
Screw-locking |
| Termination |
screw |
| Wire gauge (mm) |
0.75 , 0.5 mm² |
| Wire gauge (AWG) |
18~20 |
| Cable outlet |
4~6mm,5~8mm,6~8mm |
| Degree of protection |
IP67 |
| Mechanical operation |
>100 mating cycles |
| Upper temperature |
+85 °C |
| Lower temperature |
-25 °C |
| Rated voltage |
60 V |
| Rated impulse voltage |
1500 V |
| Rated current (40°C) |
4A |
| Contact resistance |
≤ 3 mΩ |
| Contact plating |
Au (gold) |
| Material of contact body |
PA/PBT |
