M12 A coding 4 pin right angle male assembly connector
M12 A coding 4 pin right angle male assembly connector
Publish:SHENZHEN CP-LINK ELECTRONIC CO.,LTD  Time:2014-05-25
Item No.: M12-A04MNSC004/ M12-A04FNSC004

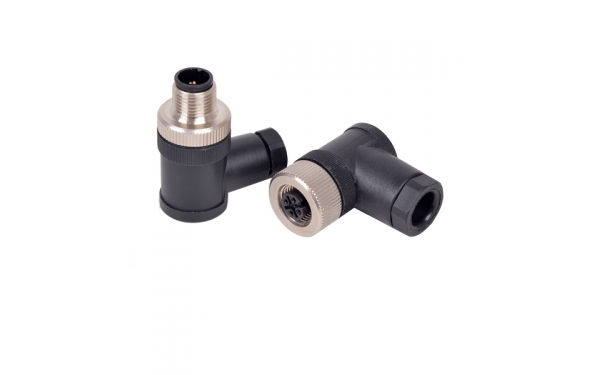

M12 A coding 4 pin right angle male assembly connector

M12 connectors with screw threaded joint,circular connector ,waterproof rating is IP67.

Protected from dust and water during immersion,resistant to many oils and chemical.

Professionally for inductive or capacitative proximity switches,sensor devices and actuator devices.

Plug design as per IEC 61076-2-101

M12 A coding Assembly Connector

Connector Series: M12



Coding: A





General Information:



Standard: IEC 61076-2-101 Ed 3.0

Connector Body: PA66+GF or TPU

Connector Contacts: Brass with gold plated

Shell/Nut: Brass with nickel plated

Insulation Resistance: ≥100M

Waterproof Rating: IP67/IP68

Electrical Data:
Rated current 4A
Rated voltag 250V
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ
Connector Specification:
Connector locking system Screw-locking
Waterproof O-ring Viton O-ring
Material of contacts body PA66+GF
Material of female connetor contacts Phosphorus copper with gold plated
Connector screw Brass with nickel plated
Cable/Wire Specification
Wire gauge (AWG) 22AWG ~ 28AWG
Wire gauge (mm²) 0.25mm² or 0.34mm²
Jacket material PVC/PUR
Temperature range -25°C ~ +90°C or -40°C ~ +105°C
