Protected from dust and water during immersion,resistant to many oils and chemical.
Professionally for inductive or capacitative proximity switches,sensor devices and actuator devices.
Plug design as per IEC 61076-2-101

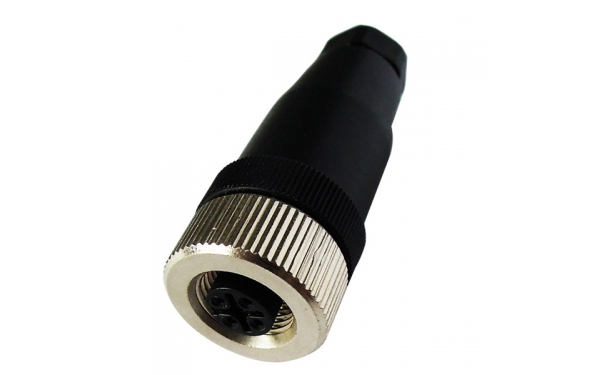

M12 A coding Assembly Connector
Connector Series: M12
Coding: A
General Information:
Standard: IEC 61076-2-101 Ed 3.0
Connector Body: PA66+GF or TPU
Connector Contacts: Brass with gold plated
Shell/Nut: Brass with nickel plated
Insulation Resistance: ≥100M
Waterproof Rating: IP67/IP68
| Electrical Data: | |
| Rated current | 4A |
| Rated voltag | 250V |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector Specification: | |
| Connector locking system | Screw-locking |
| Waterproof O-ring | Viton O-ring |
| Material of contacts body | PA66+GF |
| Material of female connetor contacts | Phosphorus copper with gold plated |
| Connector screw | Brass with nickel plated |
| Cable/Wire Specification | |
| Wire gauge (AWG) | 22AWG ~ 28AWG |
| Wire gauge (mm²) | 0.25mm² or 0.34mm² |
| Jacket material | PVC/PUR |
| Temperature range | -25°C ~ +90°C or -40°C ~ +105°C |
