M12 5pin male assembly connector shieldable screw connection

Publish：SHENZHEN CP-LINK ELECTRONIC CO.,LTD Time：2014-05-26

Item No.:M12-A03MSC005

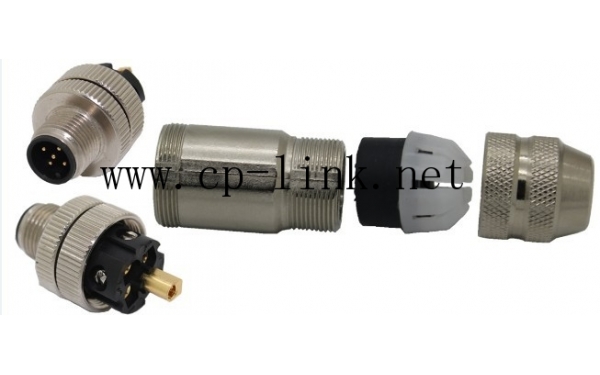

M12 5pin male assembly connector with shield

1.) Assmbly& screw type m12 connector 5pin, waterproof IP67;

2.) Protected from dust and water during immersion,resistant to many oils and chemical;

3.) Can be easily connected to proximity switches, photoelectric barries, flow moitoring devices and field bus components sensor devices and actuator devices;

4.) Satisfy all the requirements of sensor devices and actuator devices in automation technology;

Standard:

The cable connector we produced according to standard IEC61076-2-101, this International Standard describes cable connectors M12 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with screw-locking.

Detailed properties table:
Number of contacts : 5 pin

Connector locking system	Screw-locking
Termination	screw
Wire gauge (mm)	0.75 , 0.5 mm²
Wire gauge (AWG)	18~20
Cable outlet	4~6mm,5~8mm,6~8mm
Degree of protection	IP67
Mechanical operation	>100 mating cycles
Upper temperature	+85 °C
Lower temperature	-25 °C
Rated voltage	60 V
Rated impulse voltage	1500 V
Rated current (40°C)	4A
Contact resistance	≤ 3 mΩ
Contact plating	Au (gold)
Material of contact body	PA/PBT
