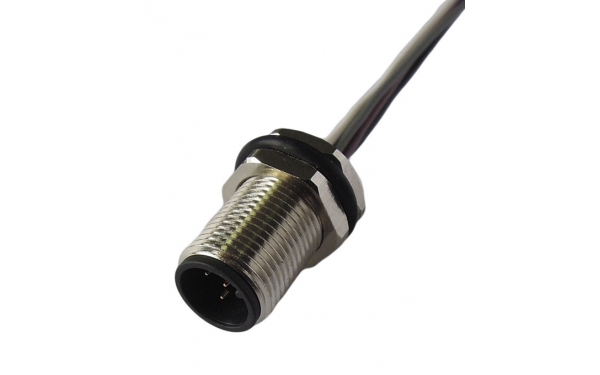

M12 A coding male front mount connector
M12 A coding male front mount connector
Publish:SHENZHEN CP-LINK ELECTRONIC CO.,LTD  Time:2014-01-07
M12 A coding male front mount connector
M12 panel PCB type,thread M12

Waterproof IP67/IP68 circular waterproof connector


Protected from dust and water during immersion,resistant to many oils and chemical

Can be easily connected to proximity switches,photoelectric barries,flow moitoring

devices and field bus components sensor devices and actuator devices.

Satisfy all the requirements of sensor devices and actuator devices in automation technology.

Detailed Product Description

Waterproof connector M12 panel PCB type, thread M12

IP67/68

CE&UL certified

RoHS

Technical Data:

Standard:IEC 61076-2-101

Coding:A

Operation temperature:-25°C~+90°C

Degree of protection:IP67/IP68

Waterproof Connector specification:

Insert:TPU

Contact:Brass with gold plating

Screw/nut:Brass with nickel plating

O-ring:FKM

Color:Black

Sealing:Epoxy resin

Electrical Character:

Contacts Rated Voltage Rated Current Contact Resistance Fixed Glue Glue Color
AC DC
3 Pin 250V 250V 4A <10mΩ Epoxy resin Black
4 Pin 250V 250V 4A <10mΩ Epoxy resin Black
5 Pin 60V 60V 4A <10mΩ Epoxy resin Black
8 Pin 30V 30V 2A <10mΩ Epoxy resin Black
