SHENZHEN CP-LINK ELECTRONIC CO.,LTD
Can be easily connected to proximity switches,photoelectric barries,flow moitoring
devices and field bus components sensor devices and actuator devices.
Satisfy all the requirements of sensor devices and actuator devices in automation technology.
Detailed Product Description

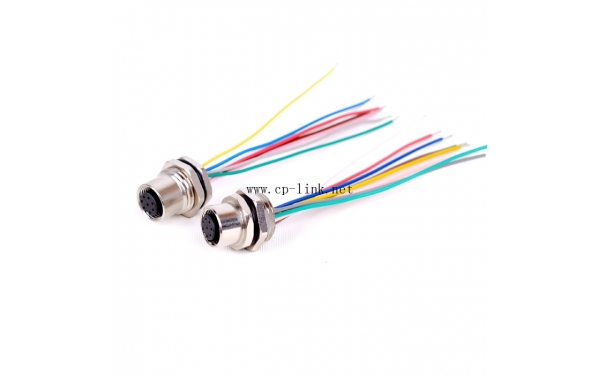

Waterproof connector M12 panel PCB type, thread M12
IP67/68
CE&UL certified
RoHS
Technical Data:
Standard:IEC 61076-2-101
Coding:A
Operation temperature:-25°C~+90°C
Degree of protection:IP67/IP68
Waterproof Connector specification:
Insert:TPU
Contact:Brass with gold plating
Screw/nut:Brass with nickel plating
O-ring:FKM
Color:Black
Sealing:Epoxy resin
Package:
1. Each piece in a single small polybag
2. 50 pieces in a small box, box size: 14.5x14.5x14.5CM
3. 12 small boxes put in a big carton, carton size: 46x30x30CM
| Electrical Data: | |
| Rated current | 2A |
| Rated voltag | 30V |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector Specification: | |
| Connector locking system | Nut-locking |
| Waterproof O-ring | Viton O-ring |
| Material of contacts body | PA66+GF |
| Material of male connetor contacts | Brass with gold plated |
| Connector screw | Brass with nickel plated |
| Cable/Wire Specification | |
| Wire gauge (AWG) | 24AWG |
| Wire gauge (mm²) | 0.25mm² |
