SHENZHEN CP-LINK ELECTRONIC CO.,LTD

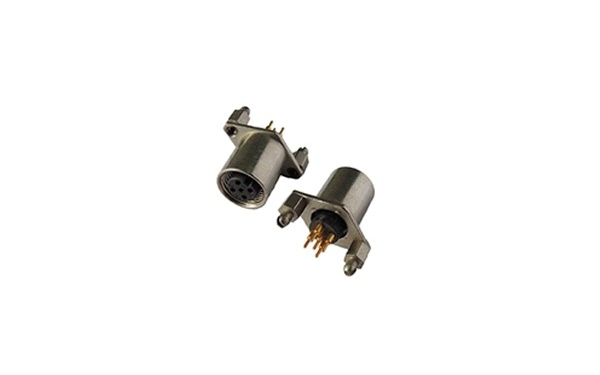

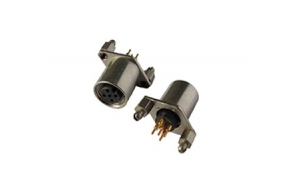

Connector Series: M12
Coding: A
General Information:
Standard: IEC 61076-2-101 Ed 3.0
Connector Body: PA66+GF or TPU
Connector Contacts: Brass with gold plated
Shell/Nut: Brass with nickel plated
Insulation Resistance: ≥100M
Waterproof Rating: IP67/IP68
Suitable for push-pull M12 connector:
Sealing:Epoxy resin
Electrical Character:
| Contacts | Rated Voltage | Rated Current | Contact Resistance | Fixed Glue | Glue Color | |
| AC | DC | |||||
| 5 Pin | 60V | 60V | 4A | ＜10mΩ | Epoxy resin | Black |
