Waterproof IP67/IP68 circular waterproof connector
Protected from dust and water during immersion,resistant to many oils and chemical
Can be easily connected to proximity switches,photoelectric barries,flow moitoring
devices and field bus components sensor devices and actuator devices.
Satisfy all the requirements of sensor devices and actuator devices in automation technology.
Detailed Product Description

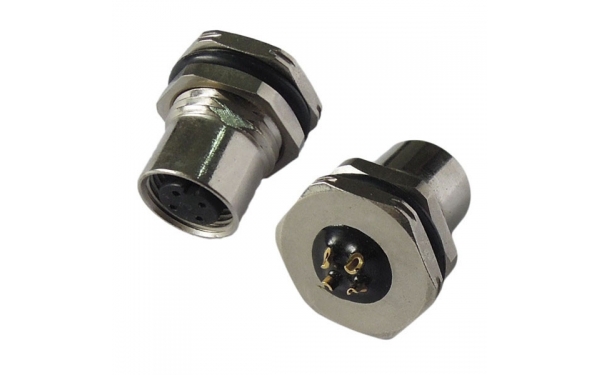

Waterproof connector M12 panel PCB type, thread M12
IP67/68
CE&UL certified
RoHS
Technical Data:
Standard:IEC 61076-2-101
Coding:A
Operation temperature:-25°C~+90°C
Degree of protection:IP67/IP68
Waterproof Connector specification:
Insert:TPU
Contact:Brass with gold plating
Screw/nut:Brass with nickel plating
O-ring:FKM
Color:Black
Suitable:
Sealing:Epoxy resin
Electrical Character:
| Contacts | Rated Voltage | Rated Current | Contact Resistance | Fixed Glue | Glue Color | |
| AC | DC | |||||
| 3 Pin | 250V | 250V | 4A | ＜10mΩ | Epoxy resin | Black |
| 4 Pin | 250V | 250V | 4A | ＜10mΩ | Epoxy resin | Black |
| 5 Pin | 60V | 60V | 4A | ＜10mΩ | Epoxy resin | Black |
| 8 Pin | 30V | 30V | 2A | ＜10mΩ | Epoxy resin | Black |
