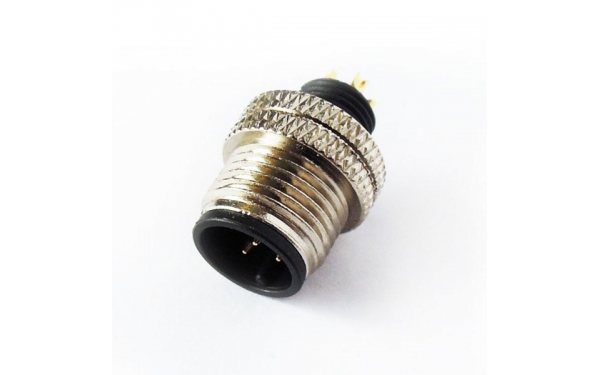

M12 A coding 4 pin soldering molding male connector
M12 A coding 4 pin soldering molding male connector
Publish:SHENZHEN CP-LINK ELECTRONIC CO.,LTD  Time:2014-01-06
M12 A coding 4 pin soldering molding male connector

Connector Series: M12

Coding: A

General Information:

Standard: IEC 61076-2-101 Ed 3.0

Connector Body: PA66+GF or TPU

Connector Contacts: Brass with gold plated

Shell/Nut: Brass with nickel plated

Insulation Resistance: ≥100M

Waterproof Rating: IP67/IP68

Electrical Character:

Contacts Rated Voltage Rated Current Contact Resistance Cable Format Cable OD
AC DC
3 Pin 250V 250V 4A <10mΩ Epoxy resin 3.5~7.5
4 Pin 250V 250V 4A <10mΩ Epoxy resin 3.5~7.5
5 Pin 60V 60V 4A <10mΩ Epoxy resin 3.5~7.5
8 Pin 30V 30V 2A <10mΩ Epoxy resin 6.0~7.5
12 Pin 30V 30V 1.5A <10mΩ Epoxy resin 6.0~7.5
