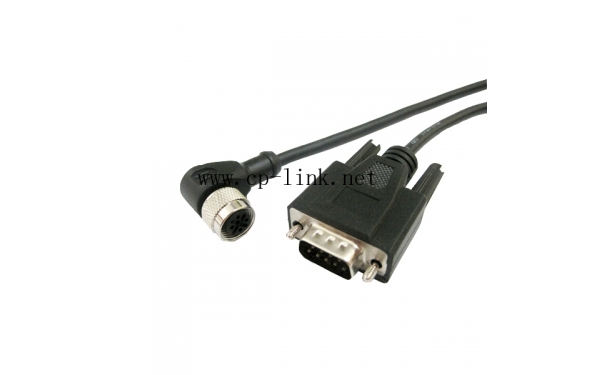

Outdoor machine ip67 cable m12 female to db9
Outdoor machine ip67 cable m12 female to db9
Publish:SHENZHEN CP-LINK ELECTRONIC CO.,LTD  Time:2014-06-02
 Outdoor machine ip67 cable m12 female to db9
1.) Outdoor machine ip67 cable m12 female to db9
, waterproof IP67;

2.) Protected from dust and water during immersion,resistant to many oils and chemical;

3.) Can be easily connected to proximity switches, photoelectric barries, flow moitoring devices and field bus components sensor devices and actuator devices;

4.) Satisfy all the requirements of sensor devices and actuator devices in automation technology;

Detailed properties table:

Connector locking system Screw-locking
Termination crimp, overmoulded on cable
Wire gauge (mm) 0,25 mm² or 0.34mm²
Wire gauge (AWG) 18~24
Cable lenth optional
Degree of protection IP67
Mechanical operation >100 mating cycles
Upper temperature +85 °C or +105 °C
Lower temperature -25 °C or -40 °C
Rated voltage 250 V
Rated impulse voltage 2500 V
Rated current (40°C) 4A
Volume resistivity ≤ 3 mΩ
Contact plating Au (gold)
Material of contact body nylon
