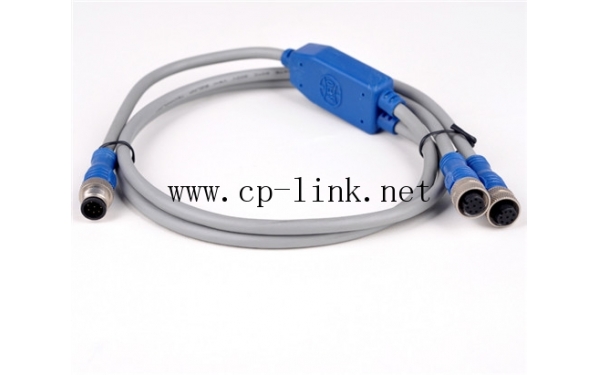

Description of M12 one male to two female waterproof connector cable:
M12 straight molding type cable with screw threaded joint,circular connector ,waterproof rating IP67.
Protected from dust and water during immersion,resistant to many oils and chemical.
Professionally for inductive or capacitative proximity switches,sensor devices and actuator devices.
M12 A coding Molding Cable
Connector Series: M12
Coding: A
Assembly Style: Molding
General Information:
Standard: IEC 61076-2-104-2008
Connector body: PA66+GF
Connector Contacts: Brass with gold plated
Coupling Nut: Brass with nickel plated
Connector overmold: TPU or PVC
Operating temperature: -40℃~+90℃ or -10℃~+80℃
Insulation Resistance: ≥100MΩ
Waterproof Rating: IP67/IP68
Certificate:IP67,UL,CE,RoHS
Equivalent to Binder's cable connector
Standard of cable connector:
The cable connector we produced according to standard IEC61076-2-101,this International Standard describes cable connectors M12 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors
either rewireable or non-rewireable, with screw-locking.
Electrical Character:
| Contacts | Rated voltage | Rated current | Contact Resistance | Cable format | Cable jacket | |
| AC | DC | |||||
| 3 Pin | 250V | 250V | 4A | ＜10mΩ | 28AWG~18AWG | PUR or PVC |
| 4 Pin | 250V | 250V | 4A | ＜10mΩ | 28AWG~18AWG | PUR or PVC |
| 5 Pin | 60V | 60V | 4A | ＜10mΩ | 28AWG~18AWG | PUR or PVC |
| 8 Pin | 30V | 30V | 2A | ＜10mΩ | 28AWG~20AWG | PUR or PVC |
| 10 Pin | 30V | 30V | 1.5A | ＜10mΩ | 28AWG~24AWG | PUR or PVC |
| 12 Pin | 30V | 30V | 1.5A | ＜10mΩ | 28AWG~26AWG | PUR or PVC |
