SHENZHEN CP-LINK ELECTRONIC CO.,LTD
Connector Series: M12
Coding: A
Assembly Style: Molding
General Information:
Standard: IEC 61076-2-104-2008
Connector body: PA66+GF
Connector Contacts: Brass with gold plated
Coupling Nut: Brass with nickel plated
Connector overmold: TPU or PVC
Operating temperature: -40℃~+90℃ or -10℃~+80℃
Insulation Resistance: ≥100MΩ
Waterproof Rating: IP67/IP68
Detailed Product Description

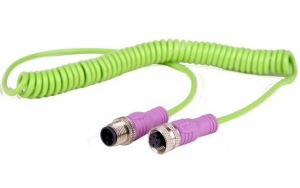

M12 connector straight molding type cable
Certificate:IP67,UL,CE,RoHS
Equivalent to Binder's cable connector
Standard of cable connector:
The cable connector we produced according to standard IEC61076-2-101,this International Standard describes cable connectors M12 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors
either rewireable or non-rewireable, with screw-locking.
Electrical Character:| Connector locking system | Screw-locking |
| Termination | crimp, overmoulded on cable |
| Wire gauge (mm) | 0,25 mm² or 0.34mm² |
| Wire gauge (AWG) | 18~24 |
| Cable lenth | optional |
| Degree of protection | IP67 |
| Mechanical operation | >100 mating cycles |
| Upper temperature | +85 °C or +105 °C |
| Lower temperature | -25 °C or -40 °C |
| Rated voltage | 250 V |
| Rated impulse voltage | 2500 V |
| Rated current (40°C) | 4A |
| Volume resistivity | ≤ 3 mΩ |
| Contact plating | Au (gold) |
| Material of contact body | nylon |
