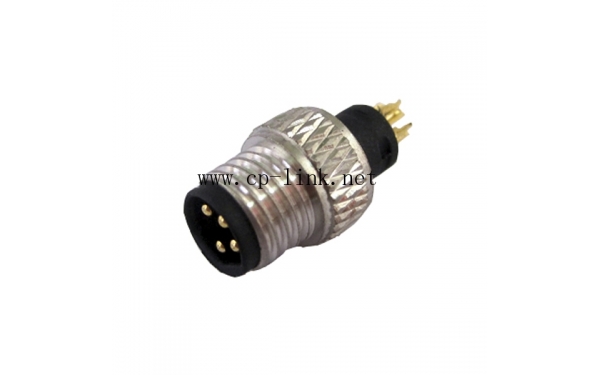

M8 4 pin male moldable connnector
M8 4 pin male moldable connnector
Publish:SHENZHEN CP-LINK ELECTRONIC CO.,LTD  Time:2014-06-02
Description of M8 4 pin male moldable connector:
1.)  M8 4 pin male moldable connector, straight fix screw with self-locking threaded joint, electrical connector;
2.) Protected from dust and water during immersion, resistant to many oils and chemical;
3.) Professionally for inductive or capacitative proximity switches, sensor devices and actuator devices;
4.) Plug design as per IEC 61076-2-101 Ed 3.0;
5.) Design with M8*1.0 screw locking;
Standard:
The electrical connector we produced according to standard IEC 61076-2-101 Ed 3.0, this International Standard describes electrical connectors M8 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with screw-locking.
Detailed properties table:
Connector series M8
Coding A
Pole 4 pins
Gender Male
Assembly type Molding
Insulation resistance ≥100MΩ
Rated current 3A, 1A
Insert PA66+30% glass fiber
Contacts Brass with gold plated
Coupling nut/screw Brass copper with nickel plated
Overmold PVC or TPU
Degree of protection IP67 in locked condition
Warm tips:
M8 4 pin male moldable connector
1.) To reduce cost and low price, few suppliers are doing Monkey business via offering fake capacity etc;
2.) The price competition is hug, but we are looking for Win-win Business and Long-term trustable partner;
3.) Quality & Credibility is also important comparing with price;
Packaging information:
1.) Carton size: 20*20*20CM;
2.) Qty / Carton: 500 pieces;
Warranty & After-sales service:
1.) Warranty: 10 years, start from purchase date;
2.) Repair and service will be free within given period 10 years;
3.) Return: within 7 days from the receipt date;
4.) All items much be returned in NEW condition, including the packing and all accessories;
5.) All shipping charges for the returned products are be paid by customer;
