M8 4pin female rear panel mount solder type with wires
M8 4pin female rear panel mount solder type with wires
Publish:SHENZHEN CP-LINK ELECTRONIC CO.,LTD  Time:2014-06-02

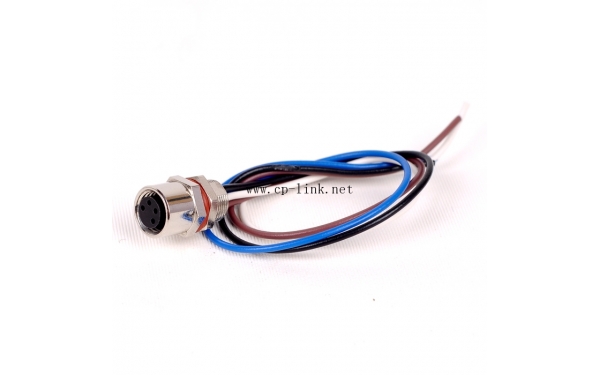

M8 4pin female rear panel mount solder type with wires
Item No.: M8-A04F007
Standard:

The electrical connector we produced according to standard IEC 61076-2-101 Ed 3.0, this International Standard describes electrical connectors M8 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with screw-locking.
Detailed properties table:
Connector series M8
Coding A
Pole 4 poles
Gender Female
Termination dip solder
Wire gauge (mm) 0,25 mm²
Wire gauge (AWG) 24
Degree of protection IP67
Mechanical operation >100 mating cycles
Upper temperature +85 °C
Lower temperature -40 °C
Rated voltage 60 V
Rated impulse voltage 800 V
Rated current 4A
Insert PA66+30% glass fiber
Contacts Brass with gold plated
Coupling nut/screw Brass copper with nickel plated
Degree of protection IP67 in locked condition
Warm tips:
M8 4 pin female front panel mounted connector
1.) To reduce cost and low price, few suppliers are doing Monkey business via offering fake capacity etc;
2.) The price competition is hug, but we are looking for Win-win Business and Long-term trustable partner;
3.) Quality & Credibility is also important comparing with price;
Packaging information:
1.) Carton size: 20*20*20CM;
2.) Qty / Carton: 200 pieces;
Warranty & After-sales service:
1.) Warranty: 10 years, start from purchase date;
2.) Repair and service will be free within given period 10 years;
3.) Return: within 7 days from the receipt date;
4.) All items much be returned in NEW condition, including the packing and all accessories;
5.) All shipping charges for the returned products are be paid by customer;
