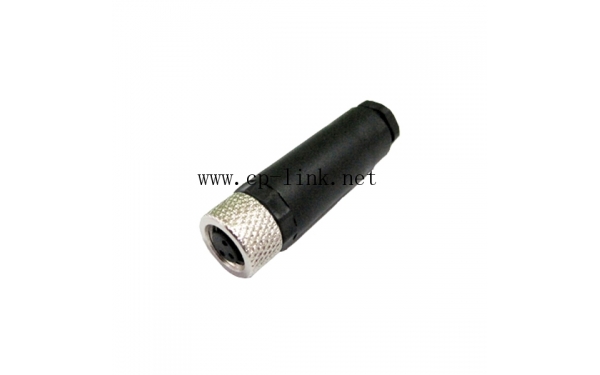

Description of M8 3 pin female assembly connector:
1.) M8 3 pin female assembly connector , straight fix screw with self-locking threaded joint, electrical connector;
2.) Protected from dust and water during immersion, resistant to many oils and chemical;
3.) Professionally for inductive or capacitative proximity switches, sensor devices and actuator devices;
4.) Plug design as per IEC 61076-2-101 Ed 3.0;
5.) Design with M8*1.0 screw locking;
Standard:
The electrical connector we produced according to standard IEC 61076-2-101 Ed 3.0, this International Standard describes electrical connectors M8 typically used for industrial process measurement and control. These connectors consist of fixed and free connectors either rewireable or non-rewireable, with screw-locking.
Detailed properties table:
| Connector series |
M8 |
| Coding |
A |
| Pole |
3 poles |
| Gender |
Female |
| Assembly type |
Assembly |
| Connector locking system |
Screw-locking |
| Termination |
solder |
| Wire gauge (mm) |
0,25 mm² |
| Wire gauge (AWG) |
24 |
| Max. Cable outlet |
3.5 - 5 mm |
| Degree of protection |
IP67 |
| Mechanical operation |
>100 mating cycles |
| Upper temperature |
+85 °C |
| Lower temperature |
-40 °C |
| Rated voltage |
60 V |
| Rated impulse voltage |
800 V |
| Rated current |
4A |
| Insert |
PA66+30% glass fiber |
| Contacts |
Brass with gold plated |
| Coupling nut/screw |
Brass copper with nickel plated |
| Degree of protection |
IP67 in locked condition |
Warm tips:
M8 3 pin female assembly connector
1.) To reduce cost and low price, few suppliers are doing Monkey business via offering fake capacity etc;
2.) The price competition is hug, but we are looking for Win-win Business and Long-term trustable partner;
3.) Quality & Credibility is also important comparing with price;
Packaging information:
1.) Carton size: 20*20*20CM;
2.) Qty / Carton: 200 pieces;
Warranty & After-sales service:
1.) Warranty: 10 years, start from purchase date;
2.) Repair and service will be free within given period 10 years;
3.) Return: within 7 days from the receipt date;
4.) All items much be returned in NEW condition, including the packing and all accessories;
5.) All shipping charges for the returned products are be paid by customer;
